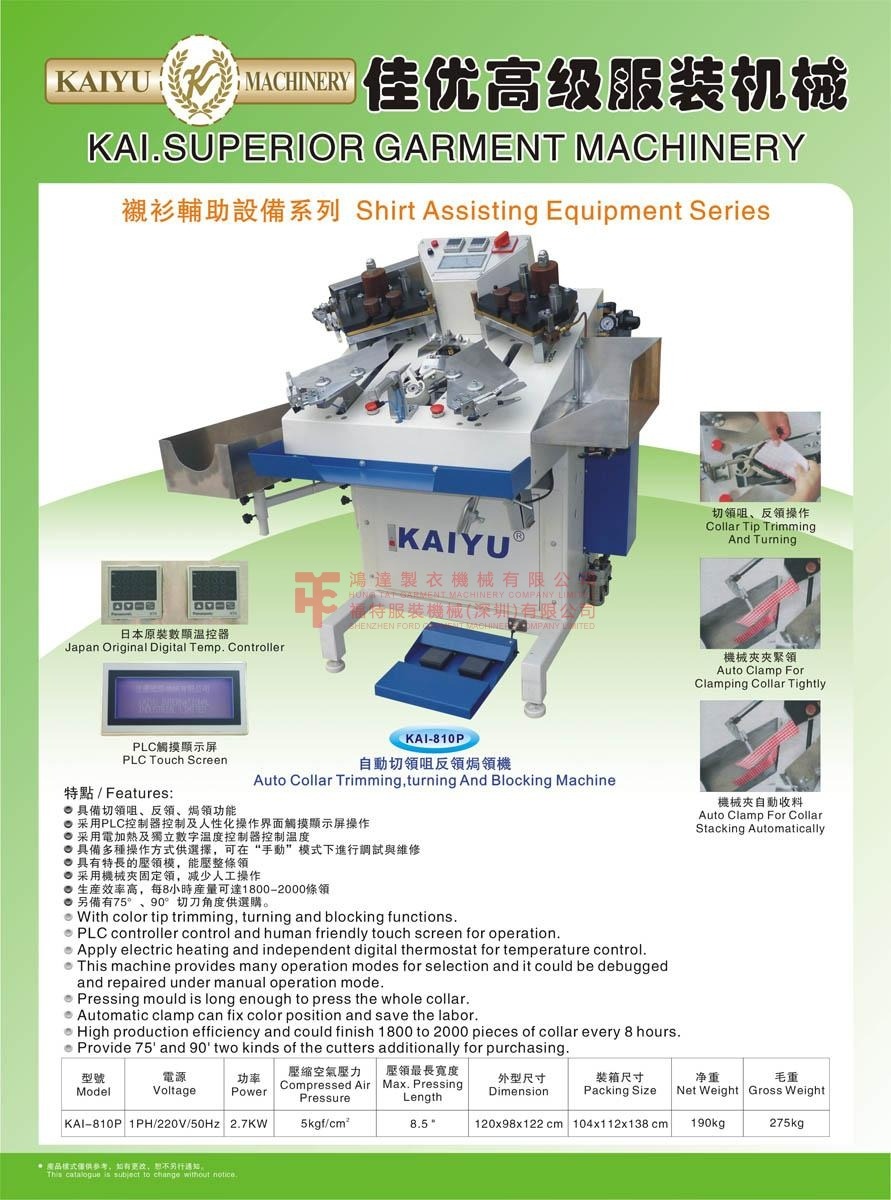

Auto Collar Trimming Blocking Machine KAI-810P | KAIYU

This machine specializes in collar tip trimming, turning, and blocking for shirt manufacturing. It features a PLC touch screen, independent digital temperature control, and a high-efficiency automatic clamp, processing up to 2,000 collars per eight-hour shift.

Features

Collar tip trimming, turning, and blocking capabilities.
PLC controller with a user-friendly touch screen.
Electric heating with independent digital thermostats.
Multiple operation modes, including manual debugging.
Extended pressing mold covers the entire collar.
Automatic clamping for precise collar positioning and reduced labor.
High output of 1,800 to 2,000 pieces per eight hours.
Optional 75° and 90° cutters available for purchase.

Suitable For:

Chemical fiber
Silk
Cotton
Linen
light fabrics

Quick Details:

Model	KAI-810P
Voltage	1PH/220V/50Hz
Power	2.7KW
Compressed Air Pressure	5kgf/cm²
Max. Pressing Length	8.5"
Dimension	120x98x122 cm
Packing Size	104x112x138 cm
Net Weight	190kg
Gross Weight	275kg

Certifications:

ISO 9001
