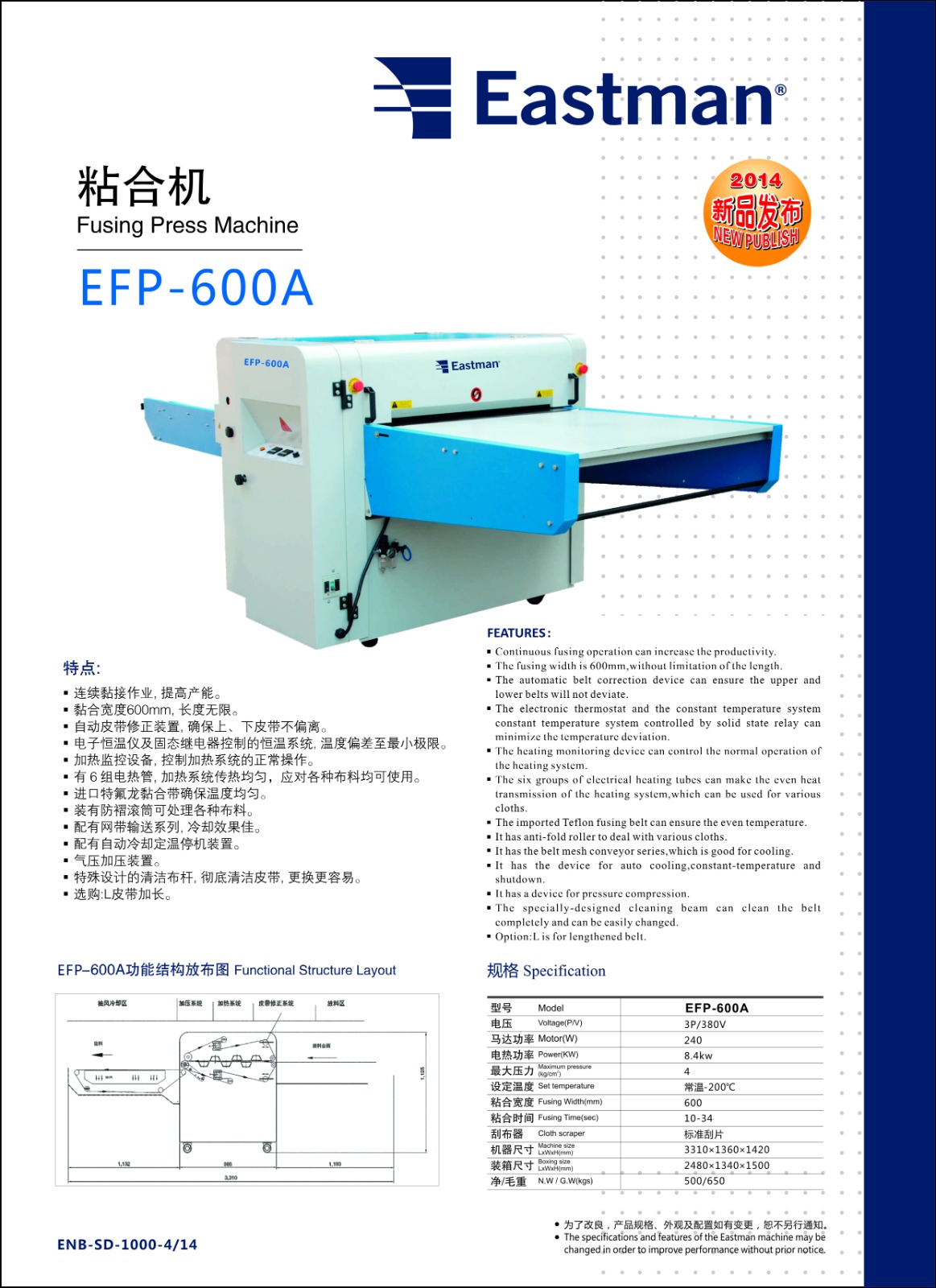

Fusing Press Machine EFP-600A | Eastman

The Eastman EFP-600A is a high-efficiency continuous fusing press designed for garment manufacturing. It features an automatic belt correction system, precise electronic temperature control, and a 600mm fusing width to ensure uniform bonding across various fabric types.

Features

Continuous fusing operation for increased productivity.
$600\text{mm}$ fusing width with unlimited length capability.
Automatic belt correction device to prevent upper/lower belt deviation.
Electronic thermostat and solid-state relay for minimal temperature deviation.
Six groups of electrical heating tubes for even heat distribution.
Imported Teflon fusing belt and anti-fold roller for high-quality finishing.
Belt mesh conveyor system for enhanced cooling.
Automatic cooling and constant-temperature shutdown device.
Pressure system utilizes compressed air for consistent results.

Suitable For:

Chemical fiber
Silk
Cotton
Linen
Woolen

Quick Details:

Model	EFP-600A
Voltage	3P / 380V
Motor Power	240W
Heating Power	8.4kW
Max Pressure	4kg/cm^2
Temperature Range	Room Temp – 200C
Fusing Width	600mm
Fusing Time	10 – 34 seconds
Machine Size (LxWxH)	3310 x 1360 x 1420mm
Net/Gross Weight	500/650kg

Certifications:

ISO 9001
