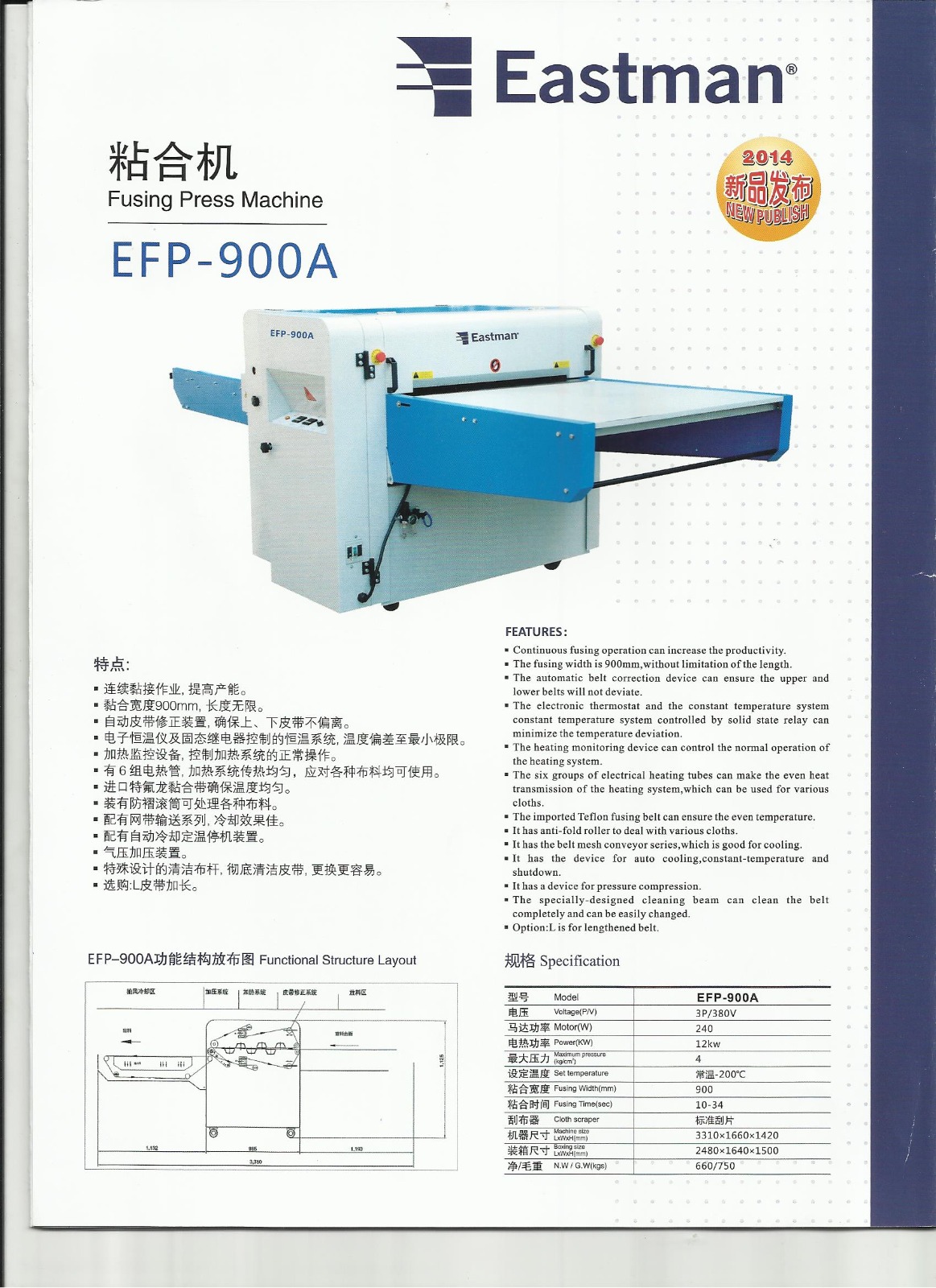

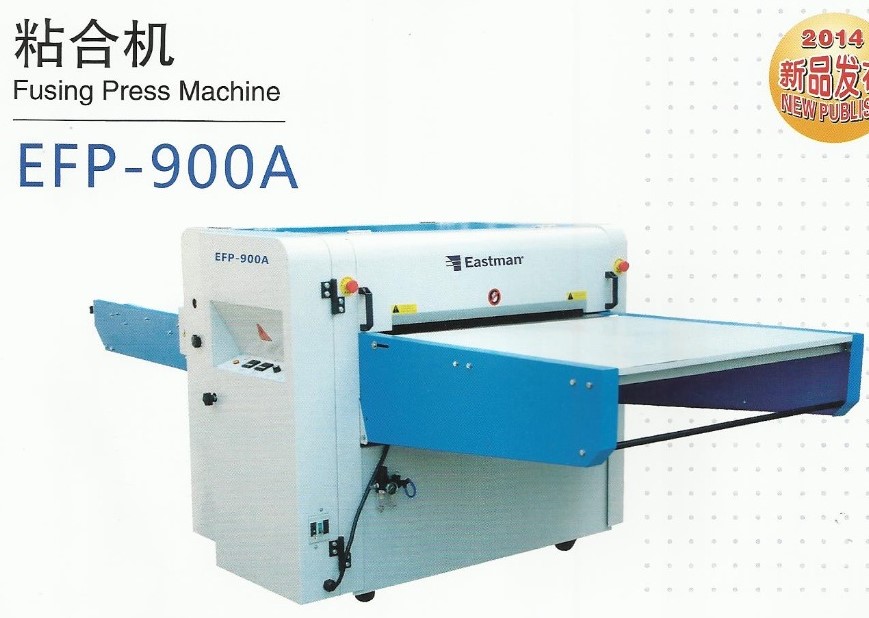

Fusing Press Machine EFP-900A | Eastman

The Eastman EFP-900A is a continuous fusing press machine built for high productivity. It features a 900mm fusing width, automatic belt correction, and a solid-state constant temperature system, making it highly efficient for processing various fabrics securely.

Features

Continuous fusing operation increases productivity.
900mm fusing width with unlimited length capability.
Automatic belt correction device prevents upper and lower belt deviation.
Electronic thermostat and solid-state relay-controlled constant temperature system minimize temperature deviation.
Heating monitoring device controls the normal operation of the heating system.
Six groups of electrical heating tubes provide even heat transmission for various cloths.
Imported Teflon fusing belt ensures even temperature.
Anti-fold roller handles various fabrics effectively.
Belt mesh conveyor series facilitates cooling.
Device for auto-cooling, constant-temperature, and shutdown.
Device for pressure compression.
Specially-designed cleaning beam completely cleans the belt and is easily changeable.
Optional lengthened belt (L).

Suitable For:

Chemical fiber
Cotton
Linen
Woolen
Denim
Other fabrics

Quick Details:

Model	EFP-900A
Voltage(V)	3P/380V
Motor(W)	240
Power(KW)	12kw
Maximum pressure (kg/cm²)	4
Set temperature	Room temp - 200°C
Fusing Width(mm)	900
Fusing Time(sec)	10-34
Cloth scraper	Standard blade
Machine size L×W×H(mm)	3310×1660×1420
Packing size L×W×H(mm)	2480×1640×1500
.W / G.W(kgs)	660/750

Certifications:

ISO 9001
