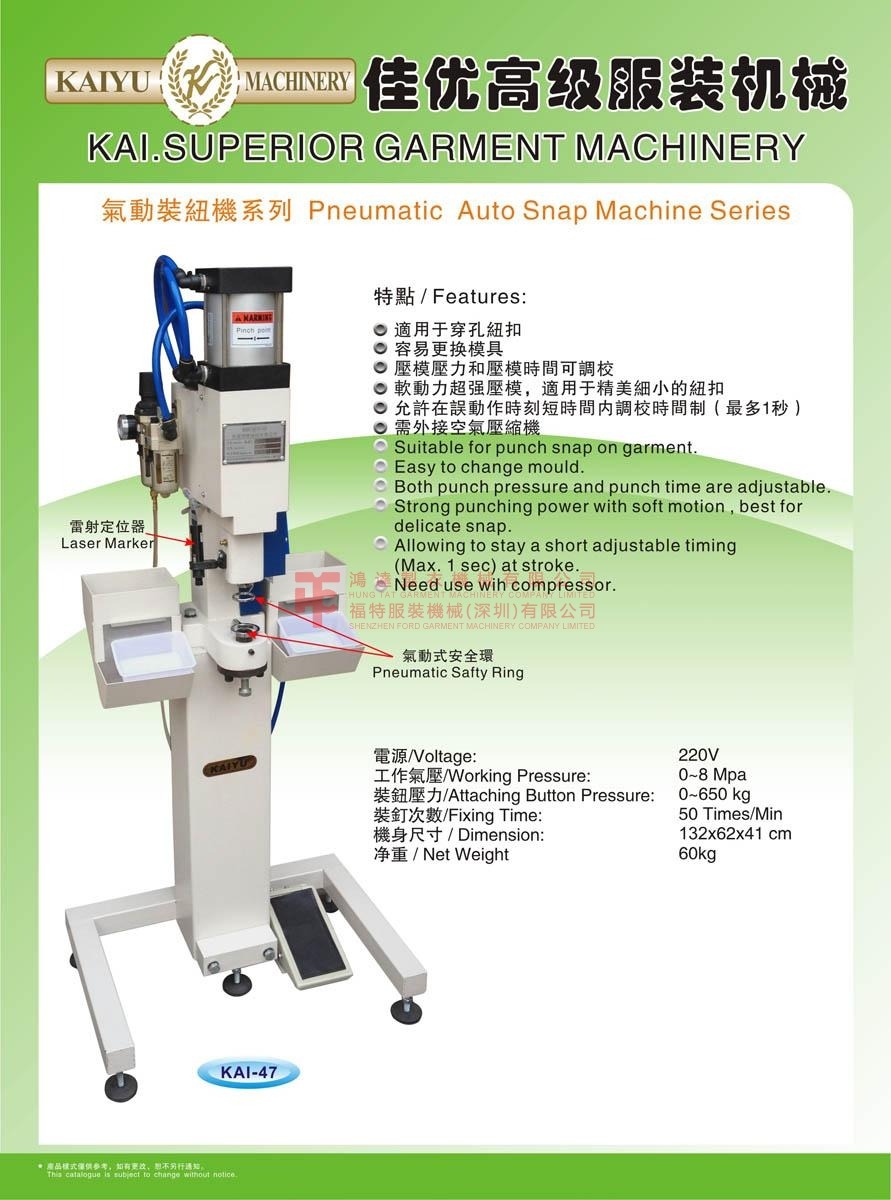

Pneumatic Auto Snap Machine KAI-47 | KAIYU

The KAIYU KAI-47 is a pneumatic automatic snap machine designed for garments. It features adjustable punch pressure and timing, providing strong power with soft motion for delicate snaps. It includes a laser marker and a pneumatic safety ring for precision.

Features

  1. Suitable for punching snaps on garments
  2. Easy to change mold
  3. Both punch pressure and punch time are adjustable
  4. Strong punching power with soft motion, best for delicate snaps
  5. Allows for a short adjustable timing (Max. 1 sec) at stroke
  6. Requires use with an air compressor
  7. Built-in laser marker for accurate positioning
  8. Integrated pneumatic safety ring

Suitable For:

  • Chemical fiber
  • Silk
  • Cotton
  • Linen
  • Woolen
  • Denim
  • Leather
  • Other fabrics
  • light fabrics

Quick Details:

ModelKAI-47
Voltage220V
Working Pressure0~8 Mpa
Attaching Button Pressure0~650 kg
Fixing Time50 Times/Min
Dimension132x62x41 cm
Net Weight60kg
